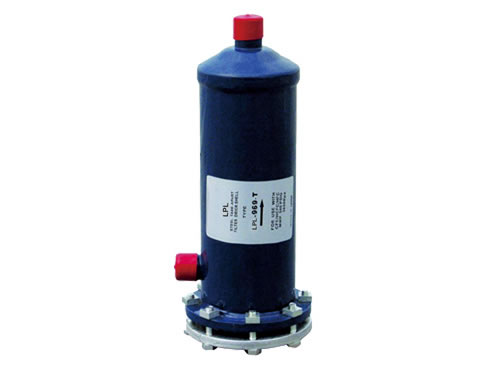

Replaceable Core Filter Drier

Technical Specifications of Replaceable Core Filter Drier

Part NO. Connection odf(IN) No. of blocks Dimensions (inches)
A B C D E F
LPL-485T 5/8 1 9.31 6.05 4.75 6.09 3.13 4.50
LPL-487T 7/8 1 9.50 6.05 4.75 6.25 3.25 4.50
LPL-489T 1 1/8 1 9.38 6.05 4.75 6.31 3.25 4.50
LPL-4811T 1 3/8 1 9.75 6.05 4.75 6.44 3.38 4.50
LPL-967T 7/8 2 15.13 6.05 4.75 11.87 3.28 4.50
LPL-969T 1 1/8 2 15.19 6.05 4.75 11.97 3.28 4.50
LPL-9611T 1 3/8 2 15.31 6.05 4.75 12.06 3.38 4.50
LPL-9613T 1 5/8 2 15.31 6.05 4.75 12.06 3.41 4.50
LPL-1449T 1 1/8 3 20.50 6.05 4.75 17.25 3.25 4.50
LPL-14411T 1 3/8 3 20.75 6.05 4.75 17.53 3.38 4.50
LPL-14413T 1 5/8 3 20.75 6.05 4.75 17.53 3.41 4.50
LPL-14417T 2 1/8 3 20.94 6.05 4.75 17.63 3.50 4.50
LPL-19211T 1 3/8 4 26.66 6.05 4.75 23.41 3.38 4.50
LPL-19213T 1 5/8 4 26.66 6.05 4.75 23.41 3.41 4.50
LPL-19217T 2 1/8 4 26.84 6.05 4.75 23.65 3.50 4.50
LPL-30013T 1 5/8 3 24.78 7.87 6.31 19.66 4.66 5.09
LPL-30017T 2 1/8 3 24.87 7.87 6.31 19.87 4.66 5.09
LPL-30021T 2 5/8 3 25.00 7.87 6.31 20.00 5.06 5.09
LPL-30025T 3 1/8 3 25.13 7.87 6.31 20.13 5.09 5.09
LPL-30029T 3 5/8 3 25.13 7.87 6.31 20.13 5.13 5.09
LPL-30034T 4 1/4 3 24.94 7.87 6.31 19.63 5.25 5.09
LPL-40017T 2 1/8 3 34.56 7.87 6.31 30.50 5.31 5.09
LPL-40021T 2 5/8 4 34.75 7.87 6.31 30.56 5.38 5.09
